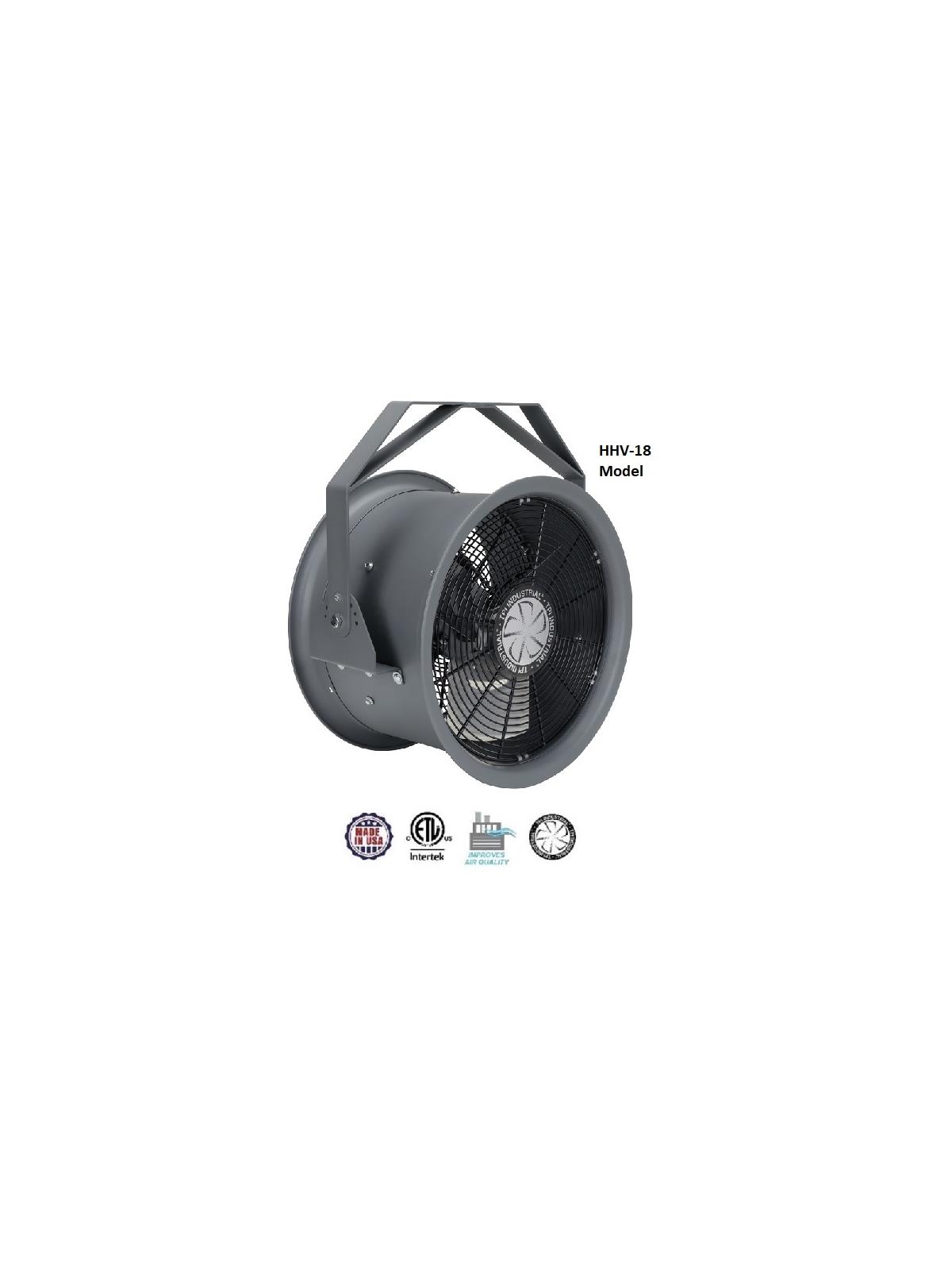

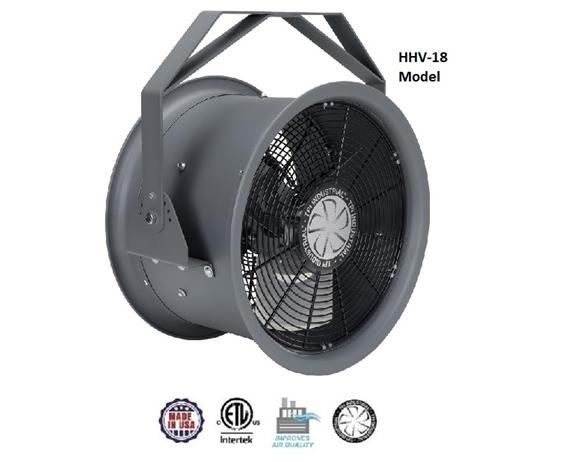

High Velocity Air Circulators
- All steel construction.
- Fully enclosed motor.
- 18", 24" & 30" model sizes.
- Heavy-duty yoke mounted fan head.
- Great for use in warehouses and loading dock areas.
Housing designed for all types of air circulating applications to provide directional - high velocity air flow. Built-in rotating design allows the supplied mounting bracket to pivot 120 degrees in (9) adjustment setting at 15 degree variations. Front and rear spiral wound grills are OSHA approved and have a black coated finish. All units are shipped fully assembled and ready for hard-wired connections. TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115 degrees Fahrenheit maximum ambient temperature. Single and three phase options available in 120, 208/240, 277 and 480-volt. Mounting brackets sold separately. FOB Shipping Point.
See Related Items tab for High Velocity Air Circulators - Mounting Brackets.
|
Description
|
Volts
|
Phase
|
CFM/RPM
|
Size
H x W x D
|
Amps
|
Wt. (lbs.)
|
Price Ea.
|
|
HHV18-120V
|
18" 1/2HP 373 Watts
|
120
|
1
|
5000/1725
|
25-7/8 x 23-3/8 x 13-1/2"
|
5.0
|
45
|
|
$1,346.27
|
|
HHV18-208/240V
|
18" 1/2 HP 373 Watts
|
208/240
|
1
|
2000/1725
|
25-7/8 x 23-3/8 x 13-1/2"
|
2.6
|
45
|
|
$1,346.27
|
|
HHV18-277V
|
18" 1/2 HP 373 Watts
|
277
|
1
|
5000/1725
|
25-7/8 x 23-3/8 x 13-1/2"
|
2.1
|
45
|
|
$1,346.27
|
|
HHV18-480V
|
18" 1/2 HP 373 Watts
|
480
|
1
|
5000/1725
|
25-7/8 x 23-3/8 x 13-1/2"
|
1.3
|
45
|
|
$1,346.27
|
|
HHV18-480V-3
|
18" 1/2 HP 373 Watts
|
480
|
3
|
5000/1725
|
25-7/8 x 23-3/8 x 13-1/2"
|
1.0
|
45
|
|
$1,543.24
|
|
HHV24-120V
|
24" 1/2 HP 373 Watts
|
120
|
1
|
8500/1725
|
30-1/4 x 33-1/4 x 13-1/2"
|
5.0
|
58
|
|
$1,542.46
|
|
HHV24-208/240V
|
24" 1/2 HP 373 Watts
|
208/240
|
1
|
8500/1725
|
30-1/4 x 33-1/4 x 13-1/2"
|
2.6
|
58
|
|
$1,542.46
|
|
HHV24-277V
|
24" 1/2 HP 373 Watts
|
277
|
1
|
8500/1725
|
30-1/4 x 33-1/4 x 13-1/2"
|
2.1
|
58
|
|
$1,542.46
|
|
HHV24-480V
|
24" 1/2 HP 373 Watts
|
480
|
1
|
8500/1725
|
30-1/4 x 33-1/4 x 13-1/2"
|
1.3
|
58
|
|
$1,542.46
|
|
HHV24-480V-3
|
24" 1/2 HP 373 Watts
|
480
|
3
|
8500/1725
|
30-1/4 x 33-1/4" x 13-1/2"
|
1.0
|
58
|
|
$1,865.31
|
|
HHV30-120V
|
30" 1 HP 746 Watts
|
120
|
1
|
14250/1700
|
38-7/8 x 38-7/8 x 16"
|
10.0
|
85
|
|
$2,229.12
|
|
HHV30-208/240V
|
30" 1 HP 746 Watts
|
208/240
|
1
|
14250/1700
|
38-7/8 x 38-7/8 x 16"
|
4.7
|
85
|
|
$2,229.12
|
|
HHV30-277V
|
30" 1 HP 746 Watts
|
277
|
1
|
14250/1700
|
38-7/8 x 38-7/8 x 16"
|
3.6
|
85
|
|
$2,229.12
|
|
HHV30-480V
|
30" 1 HP 746 Watts
|
480
|
1
|
14250/1700
|
38-7/8 x 38-7/8 x 16"
|
2.1
|
85
|
|
$2,229.12
|
|
HHV30-480V-3
|
30" 1 HP 746 Watts
|
480
|
3
|
14250/1700
|
38-7/8 x 38-7/8 x 16"
|
1.7
|
85
|
|
$2,734.25
|
